Name: Blackline Q10
Rating: 4.7 (23 reviews)

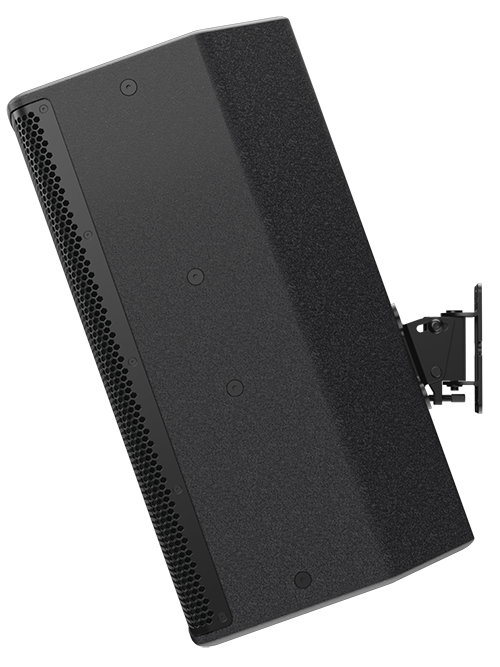

With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome. The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements.

Features

Compact passive two-way system
Symmetrical multi-angle plywood enclosure
Peak SPL of 125dB (131dB with crest factor 4)
User-rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw-tight, cloth-backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts

Applications

Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Unobtrusive stage monitoring
Corporate AV events and conferences
Weddings and parties
Main PA infill
Secondary stages at festivals
Houses of worship, leisure centres and retail outlets

Blackline Q10 offers exceptional versatility across a wide range of professional applications — from distributed sound reinforcement, houses of worship, and AV events to front-fill/in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure.

When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical.

Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications.

This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

Links

User guide Datasheet BlacklineQ Brochure

Specification

Type	Compact, passive two-way loudspeaker
Frequency response [1]	63 Hz – 17 kHz ± 3 dB, -10 db @ 48 Hz
Driver (LF)	10” (250 mm) with 2.5” (63 mm) voice coil, ferrite motor system
Driver (HF)	1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil, polyimide dome
Rated power [2]	250 W AES, 1000 W peak
Required electronics	Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics	DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [3]	95 dB
MAXIMUM SPL [3]	119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
Nominal impedance	8 ohm
Dispersion	Dispersion: 90°–110° (horizontal) × 50° (vertical)
	User-rotatable Differential Dispersion horn
Crossover	3 kHz passive
Enclosure	Symmetrical multi-angle plywood
Finish	Black textured paint
Protective grille	Black perforated steel grille with scrim cloth backing
Connectors	2 x NL4 connectors
Pin connections (input)	1+/1–
Pin connections (link)	1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings	15 x M8 inserts, 6 x M8 inserts for wall bracket
	1 x bar handle with recycled ABS pocket
	Pole-mount socket with removable cover
Dimensions	(W) 300 mm x (H) 545 mm x (D) 310 mm
	(W) 11.8 in x (H) 21.5 in x (D) 12.2 in
Weight	15.3 kg (33.7 lbs)

Architectural Specs

Martin Audio Blackline Q10

The loudspeaker shall be a passive, two-way system. Its transducers shall consist of a reflex-loaded 10” (250 mm) low-frequency driver with a 2.5” (63 mm) voice coil and a 1” (25 mm) exit high-frequency compression driver with a 1.4” (36 mm) dome, mounted on a user-rotatable Differential Dispersion horn to enable vertical or horizontal orientation of the enclosure.

Horizontal dispersion shall taper from 90° to 110° along the vertical axis to optimise near and far field coverage. Vertical dispersion shall be 50° total (+20° / –30°). The on-axis frequency response shall be 63 Hz to 17 kHz (±3 dB), with low-frequency extension down to 48 Hz (–10 dB). The loudspeaker shall produce a peak SPL of 125 dB (131 dB with crest factor 4) at 1 metre. Nominal impedance shall be 8 ohms. The loudspeaker shall require external amplification and processing. For optimal performance, it shall be used in conjunction with a dedicated electronic controller such as a Martin Audio DX series processor, paired with a VIA series amplifier, or with an iKON series combined amplifier and processor.

The rear connector panel shall be fitted with two NL4 connectors. The enclosure shall be constructed from multi-angle plywood and finished in black textured paint. It shall be fitted with a pole-mount socket with a removable cover and M8 threaded inserts to accommodate wall brackets, yokes or eyebolt suspension. The drivers shall be protected by a screw-fixed, perforated steel grille with a cloth backing. An integrated ergonomic handle made from recycled ABS shall be included.

Dimensions (W x H x D) shall be 300 mm x 545 mm x 310 mm (11.8 in x 21.5 in x 12.2 in). Weight shall be 15.3 kg (33.7 lbs).

The loudspeaker shall be the Martin Audio Blackline Q10.

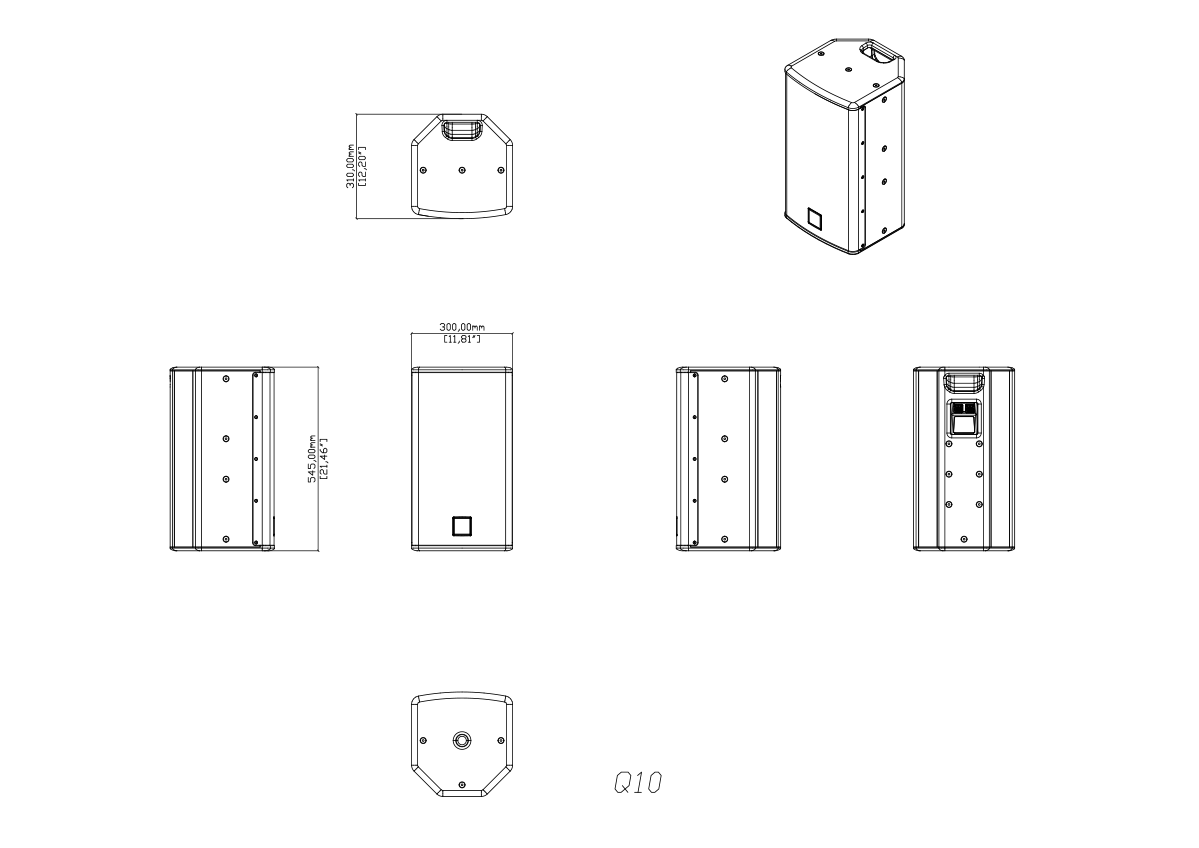

Technical Drawings & 3D Models
