Name: Blackline Q210
Rating: 4.7 (23 reviews)

Blackline Q210 is a slimline, dual-driver subwoofer engineered for applications where a visually discreet solution is required. Designed to complement BlacklineQ Series full-range loudspeakers, it extends the system’s low-frequency response down to 49 Hz, delivering tight, punchy low frequency impact with a peak SPL of 124dB (130dB for crest factor 4).

Features

Slimline direct-radiator subwoofer
2 x 10” (250mm) drivers with 2” (50mm) voice coils
Peak SPL of 124dB (130dB for crest factor 4)
Durable plywood enclosure
Slot ports for reduced air noise
Perforated steel grille
M20 / 1.4” (35mm) pole-mount socket
4Ω nominal impedance
Integral ergonomic handles
Feet for vertical or horizonal operation
Rebate recesses for stable horizontal stacking
M8 flying inserts
Three NL4 connectors

Applications

Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Corporate AV events and conferences
Weddings and parties
Houses of worship, leisure centres and retail outlets

Blackline Q210 features dual 10” (250mm) drivers with 2” (50mm) voice coils, housed in a robust plywood enclosure. A perforated, impact-resistant steel grille protects the drivers, while slot ports ensure efficient airflow and reduced turbulence for clean, controlled bass performance.

Finished in durable black paint as standard, Q210 is also available in white to support visually sensitive installations, particularly when paired with BlacklineQ column loudspeakers in white.

Q210 can be deployed singly, stacked or flown using integral M8 inserts. It includes an M20 1.4” (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs—one positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup.

Two ergonomic side handles provide ease of handling, while rubber feet on the base align with top-surface recesses to ensure stable stacking. Q210 is ideal for applications requiring compact, high-performance low-frequency reinforcement.

When used with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6, or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.

Links

Datasheet User guide Brochure

Specification

Type	Slimline, dual 10" driver subwoofer
Frequency response (4pi) [1]	49 Hz – 100 Hz ± 3 dB, -10 db @ 41 Hz
Driver	10” (250 mm) with 2” (50 mm) long excursion voice coil, ferrite motor system
Rated power [2]	400 W AES, 1600 W peak
Required electronics	Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics	DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [4]	98 dB
Maximum SPL [4]	118 dB continuous, 124 dB peak, 130 dB peak with crest factor 4
Nominal impedance	4 ohm
Dispersion	Omnidirectional
Crossover	Not applicable
Enclosure	Durable plywood
Finish	Black or white textured paint
Protective grille	Black or white perforated steel grille with scrim cloth backing
Connectors	3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
Pin connections (input)	1+/1–
Pin connections (link A)	1+/1– to 1+/1– and 2+/2– to 2+/2–
Pin connections (link B)	2+/2– on input to 1+/1– on link B
Fittings	16 x M8 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
	2 x bar handles with recycled ABS pockets: 1 at rear top, 1 at rear bottom
	M20 top-mounted thread plate for pole mounting
	4 x skids on base
	4 x skids on right side, 4 x recesses on left side: for stacking horizontally
Dimensions	(W) 296 mm x (H) 718 mm x (D) 462 mm
	(W) 11.7 in x (H) 28.3 in x (D) 18.2 in
Weight	22.4 kg (49.4 lbs)

Architectural Specs

Martin Audio Blackline Q210

The subwoofer shall be a passive, direct-radiating system. It shall feature two 10” (250 mm) low-frequency drivers with 2” (50 mm) voice coils, housed in a slimline plywood enclosure with slot ports to enhance efficiency and reduce air noise.

The on-axis frequency response shall be 49 Hz to 100 Hz (±3 dB), with low-frequency extension down to 41 Hz (–10 dB). The subwoofer shall be capable of producing a peak SPL of 124 dB (130 dB with crest factor 4) at 1 metre. Nominal impedance shall be 4 ohms. The system shall require external amplification and processing. For optimal performance, it shall be used in conjunction with a dedicated electronic controller such as a Martin Audio DX series processor, paired with a VIA series amplifier, or with an iKON series combined amplifier and processor.

The enclosure shall be finished in durable black or white paint and fitted with a perforated, impact-resistant steel grille. It shall include an M20 / 1.4” (35 mm) pole-mount socket for use with full-range loudspeakers and three NL4 connectors, one of which shall be positioned for linking when the Q210 is in a vertical orientation. The cabinet shall also include integral ergonomic side handles, M8 flying inserts and rubber feet for both vertical and horizontal operation. Rebate recesses shall be provided for secure horizontal stacking.

Dimensions (W x H x D) shall be 296 mm x 718 mm x 462 mm (11.7 in x 28.3 in x 18.2 in). Weight shall be 22.4 kg (49.4 lbs).

The loudspeaker shall be the Martin Audio Q210.

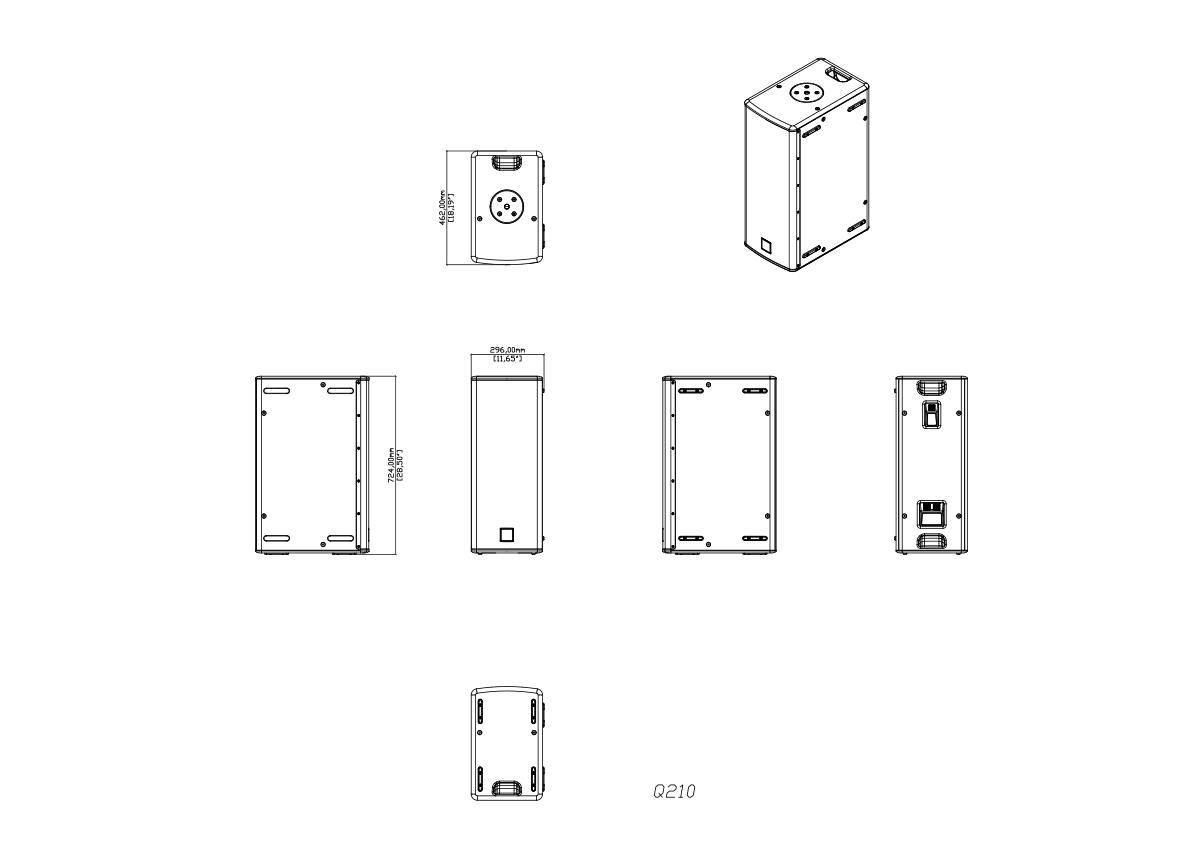

Technical Drawings & 3D Models
