Name: Blackline Q26
Rating: 4.7 (23 reviews)

Designed for venues where clarity and control are paramount, Blackline Q26 is a compact column loudspeaker that delivers a peak SPL of 125dB (131dB with crest factor 4) with precise coverage from a discreet footprint.

It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.

Features

Compact passive two-way system
Lightweight, portable with a discreet design
Peak SPL of 125dB (131dB with crest factor 4)
Differential Dispersion horn
Dispersion: 100°–120° horizontal × 40° vertical
Screw-tight, cloth-backed perforated steel grille
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts

Applications

Portable sound reinforcement
Bars and restaurants
Corporate AV events and conferences
Weddings and parties
Houses of worship

Q26 features a dual 6” (150mm) LF driver with a 1.5” (38mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.

Constructed from durable plywood, Q26 is fitted with a screw-tight steel grille and includes M8 inserts for wall brackets, yokes and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.

Engineered for clarity and control, Q44 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.

Q26 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

Links

User guide Datasheet BlacklineQ Brochure

Specification

Type	Passive two-way compact column loudspeaker
Frequency response [1]	69 Hz – 17 kHz ± 3 dB, -10 db @ 53 Hz
Driver (LF)	Dual 6” (150 mm) with 1.5” (38 mm) voice coil, ferrite motor system
Driver (HF)	1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
Rated power [2]	300 W AES, 1200 W peak
Required electronics	Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics	DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [3]	94 dB
MAXIMUM SPL [3]	119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
Nominal impedance	8 ohm
Dispersion	Dispersion: 100°–120° (horizontal) × 40° (vertical)
Crossover	2.4 kHz passive
Enclosure	Durable plywood
Finish	Black or white textured paint
Protective grille	Black or white perforated steel grille with scrim cloth backing
Connectors	1 x NL4 connector
Pin connections (input)	1+/1–
Pin connections (link)	NA
Fittings	3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
	1 x pocket handle made from recycled ABS
	Pole-mount socket with removable cover
Dimensions	(W) 193 mm x (H) 670 mm x (D) 218 mm
	(W) 7.6 in x (H) 26.4 in x (D) 8.6 in
Weight	9.5 kg (20.9 lbs)

Architectural Specs

Martin Audio Blackline Q26

The loudspeaker shall be a passive, two-way column system. Its transducers shall consist of two reflex-loaded 6” (150 mm) low-frequency drivers with 1.5” (38 mm) voice coils and a 1” (25 mm) exit high-frequency compression driver with a 1” (25 mm) dome, mounted on a Differential Dispersion horn to provide wide and consistent coverage.

Horizontal dispersion shall taper from 100° to 120° along the vertical axis to optimise near and far field coverage. Vertical dispersion shall be 40° total (+15° / –25°). The on-axis frequency response shall be 69 Hz to 17 kHz (±3 dB), with low-frequency extension down to 53 Hz (–10 dB). The loudspeaker shall produce a peak SPL of 125 dB (131 dB with crest factor 4) at 1 metre. Nominal impedance shall be 8 ohms. The loudspeaker shall require external amplification and processing. For optimal performance, it shall be used in conjunction with a dedicated electronic controller such as a Martin Audio DX series processor, paired with a VIA series amplifier, or with an iKON series combined amplifier and processor.

The rear connector panel shall be fitted with an NL4 connector. The enclosure shall be constructed from durable plywood and finished in durable black or white paint. It shall be fitted with a pole-mount socket with a removable cover and M8 threaded inserts to accommodate wall brackets, yokes or eyebolt suspension. The drivers shall be protected by a screw-fixed, perforated steel grille with a cloth backing.

Dimensions (W x H x D) shall be 193 mm x 670 mm x 218 mm (7.6 in x 26.4 in x 8.6 in). Weight shall be 9.5 kg (20.9 lbs).

The loudspeaker shall be the Martin Audio Blackline Q26.

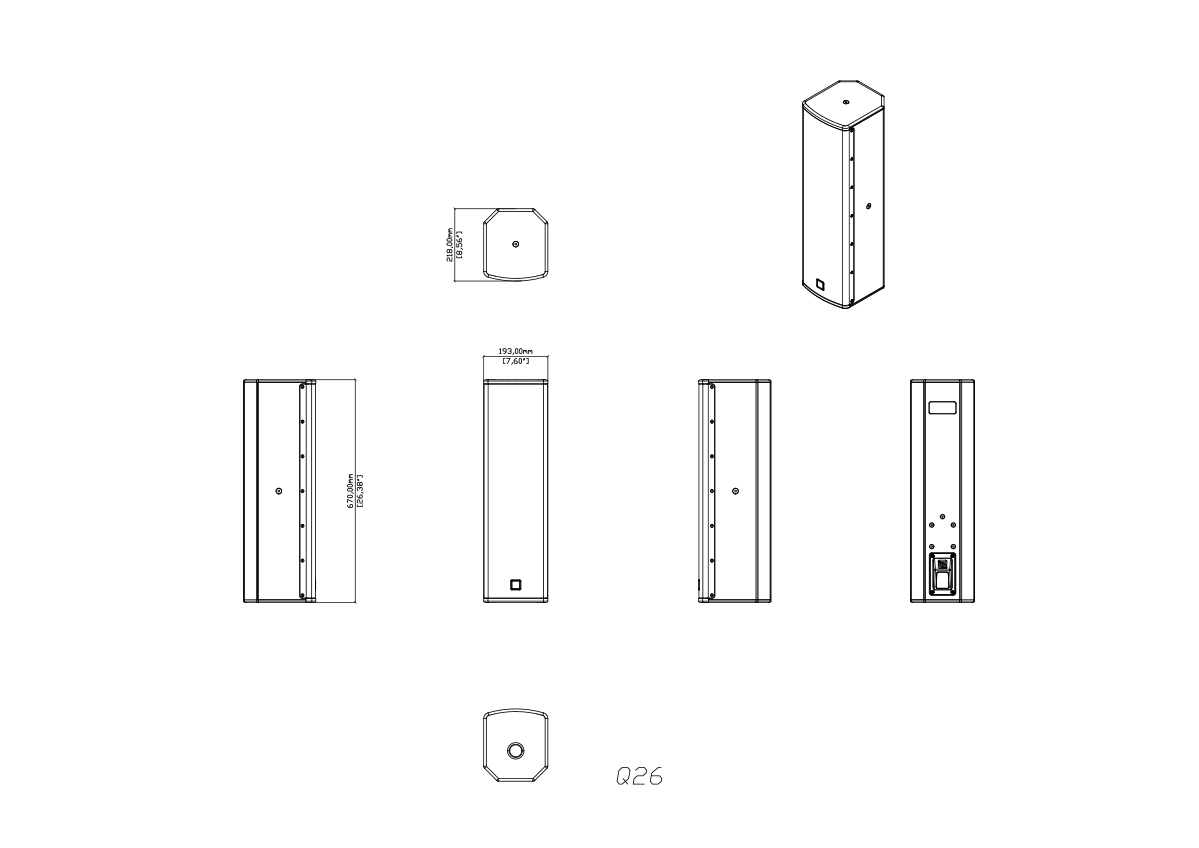

Technical Drawings & 3D Models
